ELECTRIC JACK MOTOR, 26" POWER STANCE LEVELING JACK GEAR MOTOR
Model: DZ62ZY-70-110

Voltage 12V DC

No-load Current 1.8A

No-load Speed 108rpm

Rated Current 9.5A

Rated Speed 92rpm

Rated Torque 6.6N.m

Max. Service Current 25A

Max. Service Torque 18N.m

Gear Ratio 47.5 : 1 ( 3 Stages )

UL, CE, Reach and RoHS approval
With 1 Channel 2ppr Magnetic Encoder
Customized shaft dimensions and technical specifications are available upon requested

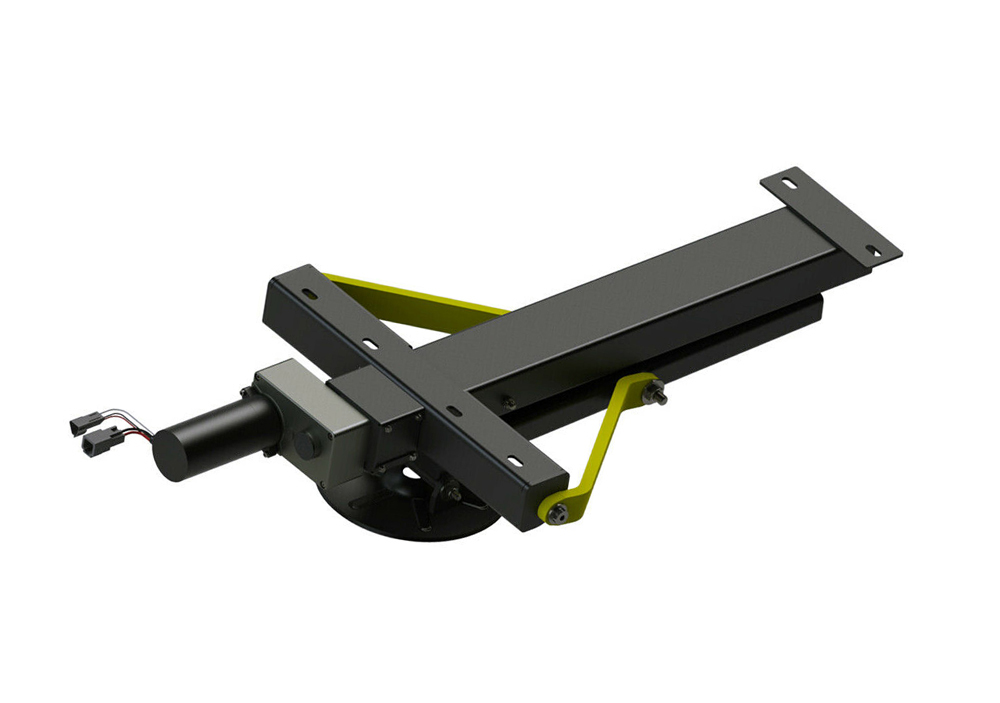

Replacement Stabilizer Motor and Gearbox for Lippert Components Ground Control TT Leveling SystemItem # LC656216
