115ZY PERMANENT MAGNET DC MOTOR TYPICAL SPECS.:Model No.VoltageRated PowerRated SpeedRated TorqueRated CurrentLUnitsVWrpmN.m< Amm115ZY12-1832480030002.645210115ZY24-9202492035002.550115ZY38-4703847018002.517.5115ZY115-85011585021003.711270115ZY130-2400130240045005.025115ZY220-77022077020003.74.5Mounting NEMA 48C, NEMA 56C,  IEC61/71/80 B5/B14, NEMA 143TC/145TC, TENV, TEFC

Motor type3-phase, 8 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter52mmLength90mm; 100mmNominal voltage12V/24V DC or customizedNo load speed4000rpm; 5000rpm; 4700rpmNorminal current1.56A; 2.6A; 2.08A; 3.13ANominal speed3000rpm; 4000rpm; 3900rpmNominal torque0.1N.m; 0.12N.m; 0.13N.m; 0.14N.mNominal power30W; 50W; 40W; 60WIP ratingup to IP68

Motor type3-phase, 10 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter80mmLength95mm; 105mmNominal voltage12V/24V DC or customizedNo load speed4000rpm; 5000rpm; 4700rpmNorminal current10.42A; 13.02A; 15.63A; 18.23ANominal speed3000rpm; 4000rpm; 3900rpmNominal torque0.637N.m; 0.597N.m; 0.955N.m; 0.857N.mNominal power200W; 250W; 300W; 350WIP ratingup to IP68

Motor type3-phase, 8 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter80mmLength85mmNominal voltage12V/24V DC or customizedNo load speed4000rpm; 5000rpmNorminal current1.56A; 2.6ANominal speed3000rpm; 4000rpmNominal torque0.096N.m; 0119N.mNominal power30W; 50WIP ratingup to IP68

Motor type3-phase, 8 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter60mmLength80mmNominal voltage12V/24V DC or customizedNo load speed3500rpmNorminal current4.63ANominal speed3000rpmNominal torque0.25N.mNominal power80WIP ratingup to IP68

Motor type3-phase, 8 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter60mmLength70mmNominal voltage12V/24V DC or customizedNo load speed3600rpmNorminal current3.5ANominal speed3000rpmNominal torque0.19N.mNominal power60WIP ratingup to IP68

Motor type3-phase, 8 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter52mmLength80mmNominal voltage12V/24V DC or customizedNo load speed4000rpm; 5000rpmNorminal current4.17A; 5.73ANominal speed3000rpm; 4000rpmNominal torque0.255N.m; 0.263N.mNominal power80W; 110WIP ratingup to IP68

Motor type3-phase, 8 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter52mmLength60mm; 70mmNominal voltage12V/24V DC or customizedNo load speed4000rpm; 5000rpmNorminal current1.56A; 2.6A; 2.08A; 3.13ANominal speed3000rpm; 4000rpmNominal torque0.096N.m; 0.119N.m; 0.127N.m; 0.143N.mNominal power30W; 50W; 40W; 60WIP ratingup to IP68

Motor type3-phase, 4 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter42mmLength95mm; 105mmNominal voltage12V/24V DC or customizedNo load speed4000rpm; 5000rpmNorminal current2.22A; 3.33A; 2.6A; 3.89ANominal speed3000rpm; 4000rpmNominal torque0.13N.m; 0.14N.m; 0.16N.m; 0.17N.mNominal power40W; 60W; 50W; 70WIP ratingup to IP68

Motor type3 Phase, 4 poles Brushless DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter42mmLength70mm; 80mmNominal voltage12V/24V DC or customizedNo load speed4000rpm; 5000rpmNorminal current1.16A; 1.74A; 2.22ANominal speed3000rpm; 4000rpmNominal torque0.06N.m; 0.07N.m;  0.1N.mNominal power20W; 30W; 40WIP ratingup to IP68

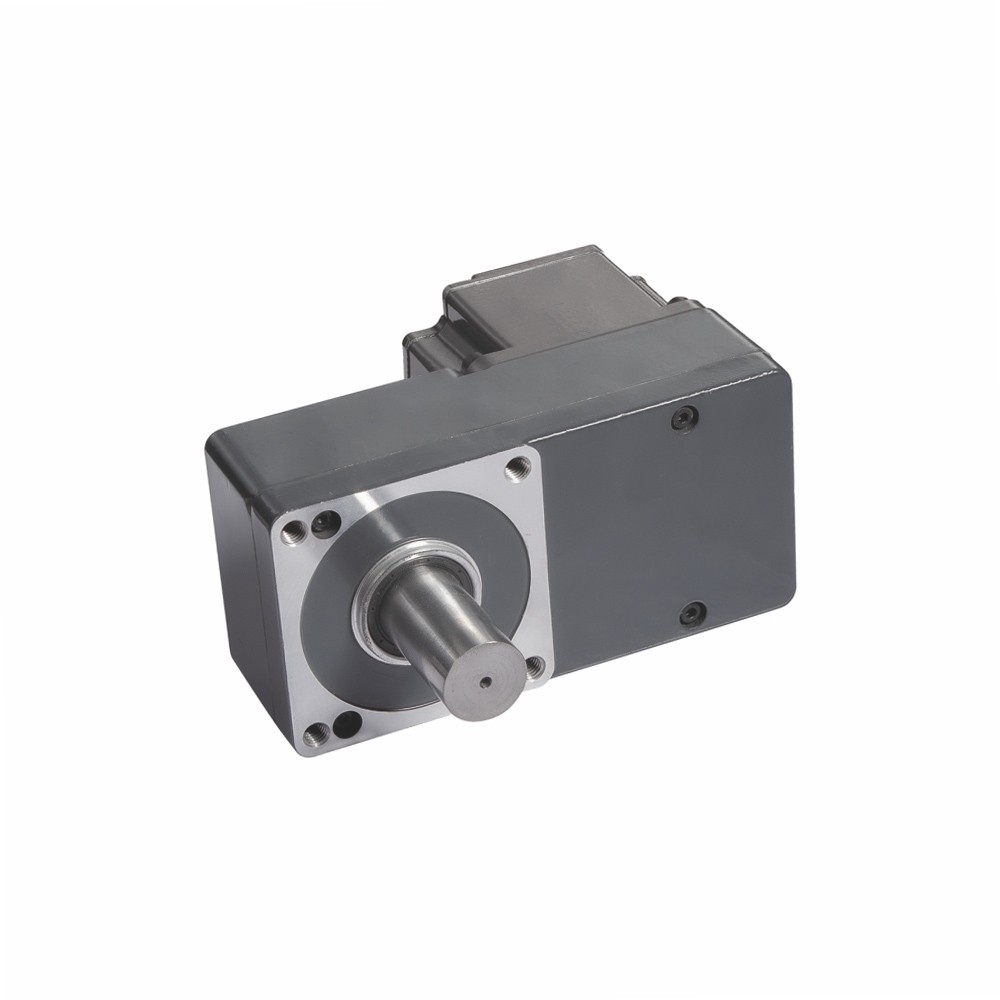

Motor typeBrushless DC motorGearbox typeSpur/Parallel ShaftPole10Phase3DiameterGearbox: 80mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:5 ~1: 200Nominal current15.63A; 18.23ANo load speed4000rpm; 4700rpmNominal speed3000rpm; 3900rpmPermissible load range2N.m ~ 100N.m for S1 duty cycleDriverExternal driverRated power300W; 350W

Motor typeBrushless DC motorGearbox typeSpur/Parallel ShaftPole10Phase3DiameterGearbox: 80mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:5 ~1: 200Nominal current10.42A; 13.02ANo load speed4000rpm; 5000rpmNominal speed3000rpm; 4000rpmPermissible load range2N.m ~ 100N.m for S1 duty cycleDriverExternal driverRated power200W; 250W
